Description

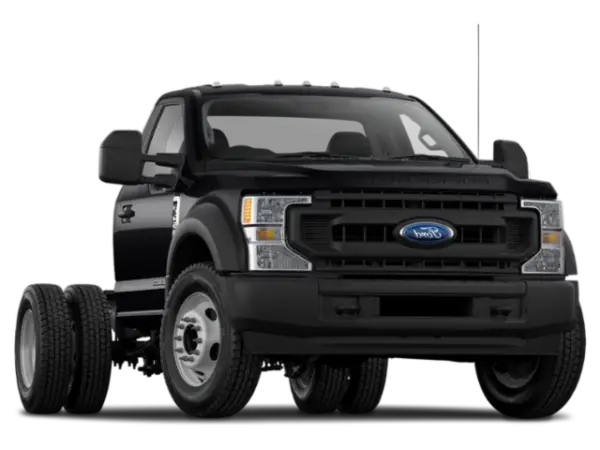

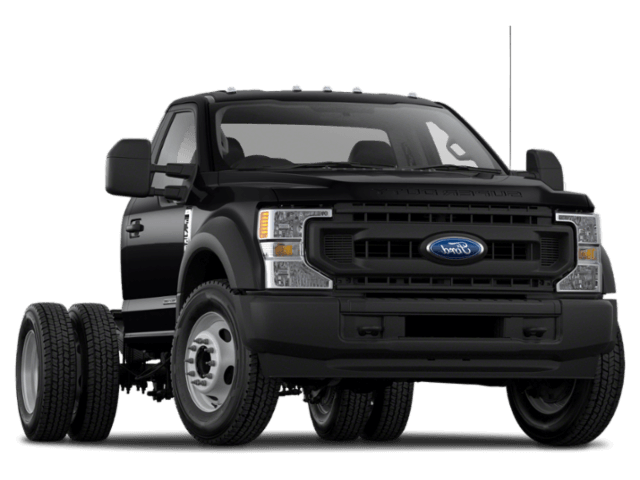

- Vehicle Name: Ford Super Duty F-600 DRW
- Body Style: SD Regular Cab
- Body Code: H
- Drivetrain: Four Wheel Drive
- Passenger Capacity: 3
- Base Curb Weight: 7218
- Gross Axle Wt Rating – Front: 7500
- Gross Axle Wt Rating – Rear: 15500
- Curb Weight – Front: 4097
- Curb Weight – Rear: 3119
- Gross Vehicle Weight Rating Cap: 22000
- Gross Combined Wt Rating: 30000
- Dead Weight Hitch – Max Trailer Wt.: 5000
- Dead Weight Hitch – Max Tongue Wt.: 500
- Wt Distributing Hitch – Max Trailer Wt.: 18500
- Wt Distributing Hitch – Max Tongue Wt.: 1850
- Fifth Wheel Hitch – Max Trailer Wt.: 21900
- Fifth Wheel Hitch – Max Tongue Wt.: 5475
- Maximum Trailering Capacity: 18500
- Engine Order Code: 99T
- Engine Type: Intercooled Turbo Diesel V-8
- Displacement: 6.7 L/406
- Fuel System: Diesel Direct Injection
- SAE Net Horsepower @ RPM: 330 @ 2600
- SAE Net Torque @ RPM: 825 @ 2000
- Trans Order Code: 44G
- Trans Type: 10
- Trans Description Cont.: Automatic w/OD
- Trans Description Cont. Again:
- First Gear Ratio (:1): 4.62
- Second Gear Ratio (:1): 2.92
- Third Gear Ratio (:1): 2.13
- Fourth Gear Ratio (:1): 1.77
- Fifth Gear Ratio (:1): 1.52
- Sixth Gear Ratio (:1): 1.28
- Reverse Ratio (:1): 4.70
- Trans Power Take Off: Yes
- Trans PTO Access: Yes
- Transfer Case Model: Electronic
- Transfer Case Power Take Off: Yes
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 157
- Engine Oil Cooler: None
- Suspension Type – Front: Other
- Suspension Type – Rear: Leaf
- Spring Capacity – Front: 7500
- Spring Capacity – Rear: 15500
- Axle Type – Front: Non-Independent
- Axle Type – Rear: Rigid Axle
- Axle Capacity – Front: 7500
- Axle Capacity – Rear: 15500
- Axle Ratio (:1) – Front: 4.88
- Axle Ratio (:1) – Rear: 4.88
- Front Tire Order Code: TD5
- Rear Tire Order Code: TD5
- Spare Tire Order Code:
- Front Tire Size: LT245/70SR19.5
- Rear Tire Size: LT245/70SR19.5
- Spare Tire Size:
- Front Tire Capacity: 7500
- Rear Tire Capacity: 15000
- Revolutions/Mile @ 45 mph – Front: 611
- Revolutions/Mile @ 45 mph – Rear: 611
- Front Wheel Size: 19.5 X 6.75
- Rear Wheel Size: 19.5 X 6.75
- Spare Wheel Size:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Re-Circulating Ball
- Turning Diameter – Curb to Curb: 42.5
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc – Front (Yes or ): Yes
- Disc – Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 15.4
- Rear Brake Rotor Diam x Thickness: 15.8
- Drum – Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 40
- Aux Fuel Tank Capacity, Approx:
- Front Head Room: 40.8
- Front Leg Room: 43.9
- Front Shoulder Room: 66.7
- Front Hip Room: 62.5
- Wheelbase: 145
- Length, Overall: 230.7
- Width, Max w/o mirrors: 80
- Overhang, Front: 38.3
- Overhang, Rear w/o bumper: 47.2
- Cab to Axle: 60
- Cab to End of Frame: 107.2
- Frame Width, Rear: 34.2
- Seventh Gear Ratio (:1): 1.00
- Eighth Gear Ratio (:1): 0.85
- Model Group: F-Series Chassis
- Vehicle Segment: Chassis
- Vehicle Type: Standard Cab
- Body Cab Style: Standard Cab
- Engine Displacement Units: 6.7
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 4
